Automated Guided Vehicle

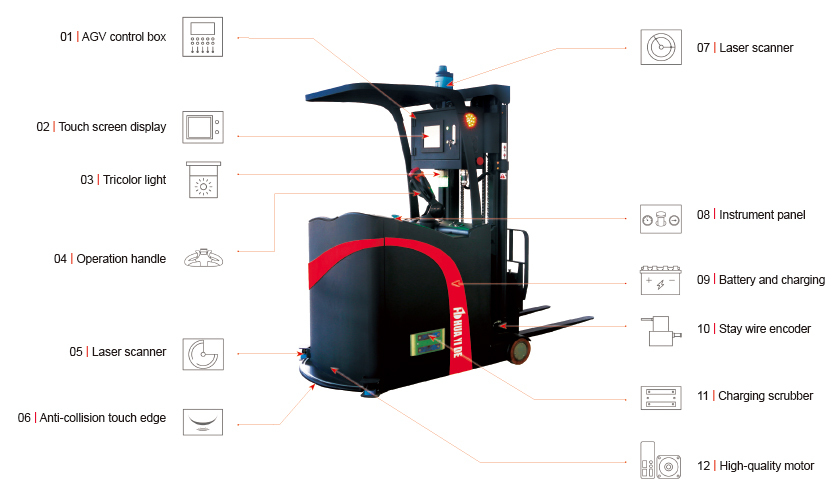

Diagram Forvehicle Body Structure

AGV control box：It is equipped with the Beckhoff platform to realize AGV operation control
Touch screen display：The 7-inch touch display screen displays mo re vehicle information and is operated more conveniently
Tricolor light：There are red, yellow and green. The color of the lamp can be used to judge the state of the AGV.
Operation handle：The handle is easy to touch and control. It is used to control the AGV in the AGV manual mode, which is highly energy efficient.
Laser scanner：High-precision, safety-grade laser scanning for obstacle detection, and detects obstacles within 270o to ensure safety in the driving area
Anti-collision touch edge：The safety touch edge is also called the safety ed ge, and it is a rubber band-shaped pressu re sensitive switch which can prevent collision.
Laser scanner：It is a well-known German brand SICK which integrates measu re-ment, navigation and positioning functions and can process reflecto rs and contou r data accu rately and quickly.
Instrument panel：Emergen cy switch, batte ry coulombmetel key switch
Battery and charging：Provide a variety of optional battery solutions, can be equipped with lithium battery automatic fast charge technology. For example, if it runs continuously for about 1 hour, it can be fully charged in 10 minutes.
Stay wire encoder：Check the height of the fo rk raising or descending, and accu rately control the fo rk raising and descending.
Charging scrubber：It is used fo r automatic cha rging ofAGy featu ring la rge contact a rea and high charging efficiency.
High-quality motor：Laser navigation models use imported servo motors and drivers to make the vehicle run more smoothly, and the navigation accuracy and stopping accuracy are improved.
