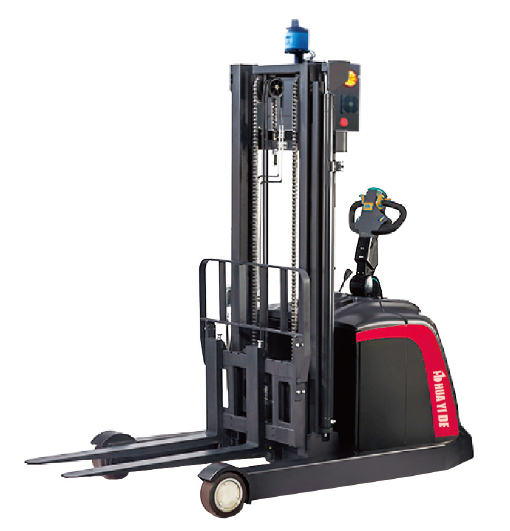

Small Straddle Reach Truck AGV

Product description：

• The lifting height of the small forward AGV fork is 3 meters as standard. It can be customized according to requirements. It has different models such as 1.6T / 2T.

Application scope：

1. Handling and turnover of materials on the workshop production line

2. AS& RS Pallet handling in and out of the conveyor line

3. Transfer between warehouse materials

• AGV dimension：L2370mm×W1300mm×H2250mm (Customization is conducted according to operating conditions.)

• Load capacity：1400kg (High-power transporting capacity models can be customized according to customer requirements.)

• Lifting height：3000mm  |  Traveling direction：Forward,turn, back

• Navigation mode：Laser navigation  |  Display mod：Touch screen

• Operation mode：Manual/automatic switching

• Communication mode：Wireless WIFI (complying with IEEE 802.lla/b/g standard)

• System interface：Rese rve WMS, MES, ERP, central dispatching system expansion port

• Driving mode：Guide wheel drive  |  Driving unit：≥1.5KW

• Speed：5～90m/min  |  Gradeability：≤50

• lurning radius：≥1780mm (Customization is conducted according to special requirements.)

• Guidance accuracy：±10 mm  |  Parking accuracy：±10 mm

• Power supply：24V/180AH Lithium battery (powered standard configuration)

• Charging mode：Manual charging/automatic charging (optional）

• Safe distance：0～3m  |  Alarm form：Sound-light alarm

• Endurance：With automatic charging type, the cha rging-discharging ratio is 1:3

• Characteristics：Characteristics  Small turning radius, suitable for handling various pallets

---

Safety protection grade: Five-Level protection

Level 1：Laser detection of obstacles in front of the vehicle body  |  laser detection of obstacles behind the vehicle body

Level 3：dispatching system  |  Level 4：contact mechanical anti-collision  |  Level 5：emergency stop

---
