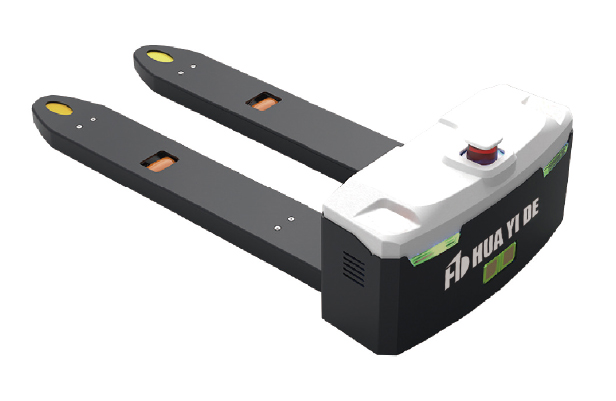

MINI Handing AGV

Product description: Lightweight and stable body

Application scope: Suitable for transfer and storage between warehouse materials

• AGV dimension：L1460mm×W735mm×H330mm  (Customization is conducted according to operating conditions.)

• Load capacity：1000kg  (High-power transporting capacity models can be customized according to customer requirements.)

• Lifting height：100mm  |  Traveling direction：Forward,turn, back

• Navigation mode：Laser navigation |  Operation mode：Manual/automatic switching

• Communication mode：Wireless WIFI (complying with IEEE 802.lla/b/g standard)

• System interface：Rese rve WMS, MES, ERP, central dispatching system expansion port

• Driving mode：Differential drive |  Speed：5～90m/min |  Gradeability：≤50

• lurning radius：≥1000mm (Customization is conducted according to special requirements.)

• Guidance accuracy：±10 mmParking accuracy：±10 mm

• Power supply：48V/30AH 48V/30AH Lithium battery (powered standard configuration)

• Charging mode：Manual charging/automatic charging (optional）

• Safe distance：0～3m |  Alarm form：Sound-light alarm

• Endurance：With automatic charging type, the cha rging-discharging ratio is 1:3

• Characteristics：Small turning radius, suitable for single-sided pallet handling and storage

---

Safety protection grade: Five-Level protection

Level 1：Laser detection of obstacles in front of the vehicle body  | laser detection of obstacles behind the vehicle body

Level 3：dispatching system  |  Level 4：contact mechanical anti-collision  |  Level 5：emergency stop

---
