Electronic label WCS Ⅱ

A series label

Finisher

Product specifications：

Aluminum alloy shell  |  IP32 protection grade  |  Display digits：simple type without numbers

Working temperature： - 40 ℃ ~ 60 ℃

2-digit picking label

Product specifications：

Aluminum alloy shell  |  IP32 protection grade  |  Display digits：2 (digits）

Working temperature： - 40 ℃ ~ 60 ℃

4-digit picking label

Product specifications：

Aluminum alloy shell  |  IP32 protection grade  |  Display digits： 4 (2 green and 2 red)

Working temperature： - 40 ℃ ~ 60 ℃

6-digit picking label

Product specifications:

Aluminum alloy shell  |  IP32 protection grade  |  Display digits: 6 (2 green and 4 red)

Working temperature: - 40 ℃ ~ 60 ℃

P  series label

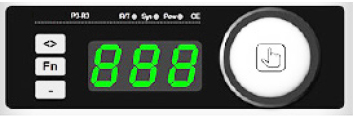

One to one electronic tag

Product specifications:

Display digit: 3 (digits)  |  digit color: green (customizable)  |  light color: 7 colors

Light emitter: high brightness LED (300lm)  |  function key: 3  |  working temperature: - 30 ℃ ~ 60 ℃

Working humidity: relative humidity 0% ~ 90%, no condensation

External dimension: 140mm × 42mm × 30mm

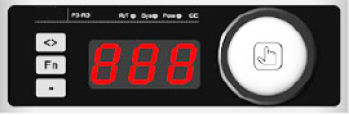

One to one electronic tag

Product specifications:

Display digit: 3 (digits)  |  digit color: red (customizable)  |  light color: 7 colors

Light emitter: high brightness LED (300lm)  |  function key: 3  |  working temperature: - 30 ℃ ~ 60 ℃

Working humidity: relative humidity 0% ~ 90%, no condensation

External dimension: 140mm × 42mm × 30mm

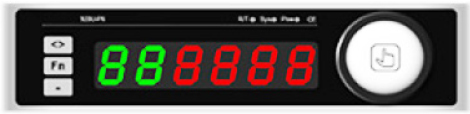

One to many electronic labels

Product specifications:

Display digit: 6 (digits)  |  digit color: 2 green and 4 red (customizable)  |  light color: 7 colors

Light emitter: high brightness LED (300lm)  |  function key: 3 working temperatures: - 30 ℃ ~ 60 ℃

Working humidity: relative humidity 0% ~ 90%, no condensation

External dimension: 177mm × 42mm × 30mm

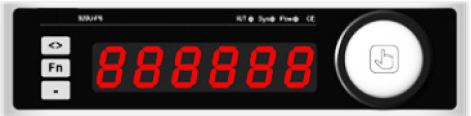

One to many electronic labels

Product specifications :

Display digit：6 (digits)  |  digit color：red  |  light color：7 colors

Light emitte：high brightness LED (300lm)  |  function key：3 working temperatures：- 30 ℃ ~ 60 ℃

Working humidity：relative humidity 0% ~ 90%, no condensation

External dimension：177mm × 42mm × 30mm
