Ordinary storage racking

Mezzanine rack

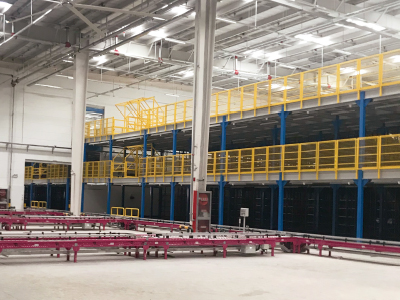

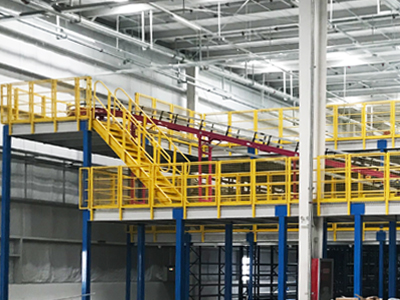

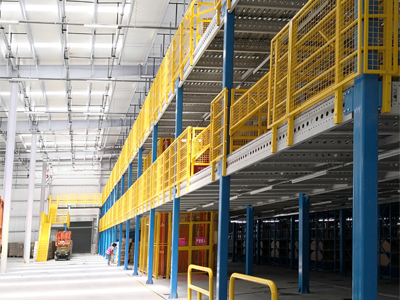

Mezzanine racking uses its own structure to build a shelf storage area with more than two floors, which doubles the storage space. It is also equipped with logistics trolleys, stairs, elevators, slides, and transportation equipment to facilitate picking operations. The mezzanine racking makes full use of the space in the height direction of the warehouse, and is particularly suitable for the classified storage management of small items with many varieties and light weight.

Mezzanines will allow you to utilize the maximum height of a warehouse and double or triple the surface area. Adding a Mezzanine can be the most economical way to increase warehouse space without the cost of a conventional building expansion. The unit shelving loading capacity is not more than 800kg per layer and the floor loading capacity is not more than 1000kg per square meter. The level height is not more than 3m and the height of shelving is around 2m, taking goods loading and unloading into good consideration.

Staircase,hydraulic-lift table and lift are required,combined with forklift, for moving goods from ground to floor panels.

Mezzanine is freely to design to be two-layer or three-layer based on the requirements from customers, taking full use of the storage space. This kind of mezzanine is widely used in the fields of automobiles,electronics,light industry and mechanics, etc.

Features:

Additional space can be created.
Free style on the ground floor
Pillars of pipes or tubes with I beam to form up the basic structure
Floor deck comes in solid,perforated,flat and corrugated and bar grating type.
Depending on the height of the warehouse,mezzanine can be structured for two or three levels.
More than a dozen types of uprights to meet different needs.

。
