Electronic label WCS

Electronic label WCS Ⅰ

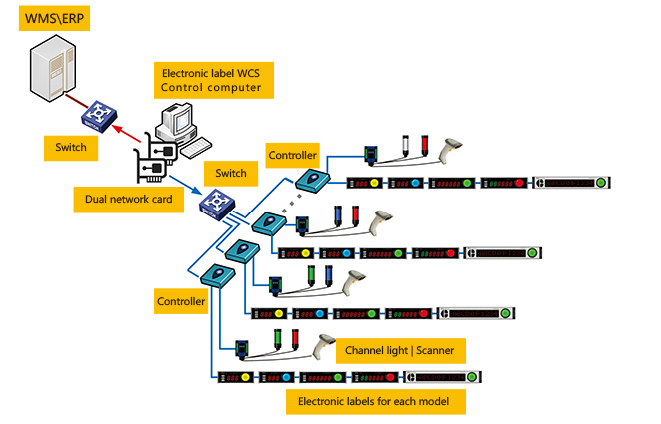

01 PTL system adopts distributed control mode

>The PTL control system (WCS) and the electronic label controller use the TCPIP protocol, and are connected by a large network (using an independent network switch);

>Between the electronic label controller and the electronic label, the Epost internal communication bus is used to realize data transmission;

>The controller is directly connected with the electronic label, and there is no transfer device in the middle:

02 Install dual network cards on the control side (WCS) server

>In order to prevent the communication commands (WCS and electronic labels) of the PTL system from being affected by other systems, resulting in data delay or loss, it is necessary to set an independent network segment for the PTL system;

>The communication between WMS/ERP and PTL system is 1 network segment;

>The communication between WCS and electronic label controller is 1 network segment;

03 Connection between PTL system and WMS/ERP

>Use TCPIP protocol, connect via Ethernet (use independent network switches);

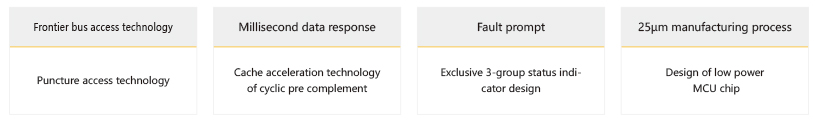

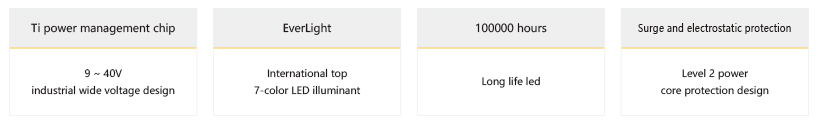

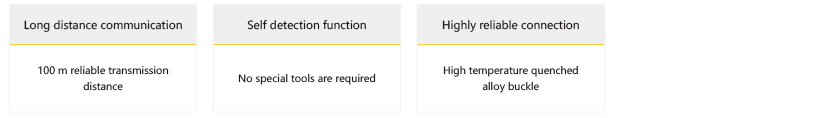

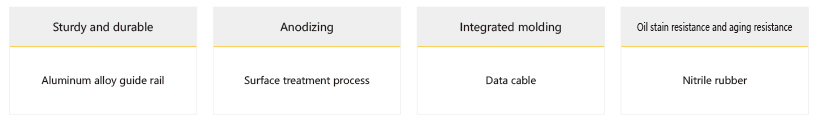

Technical advantage
